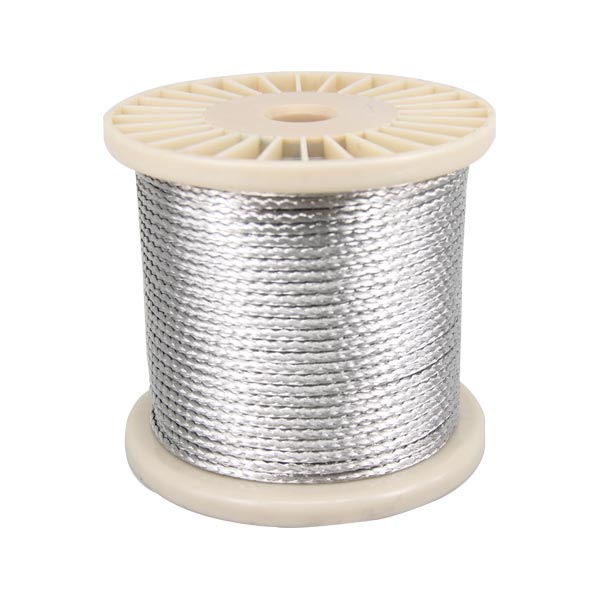

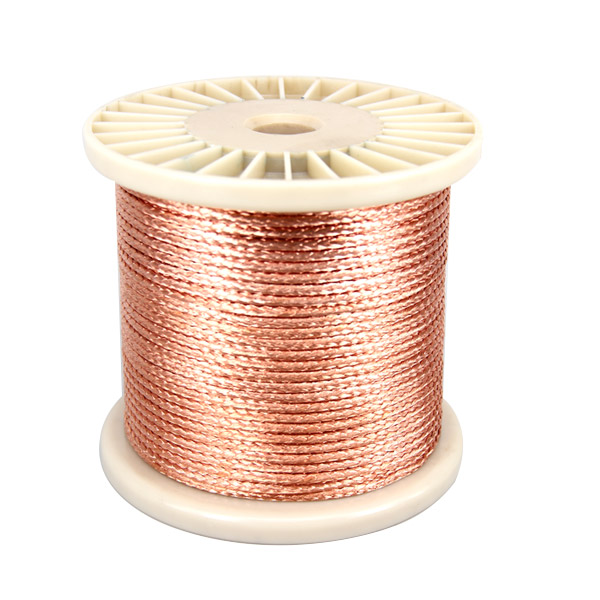

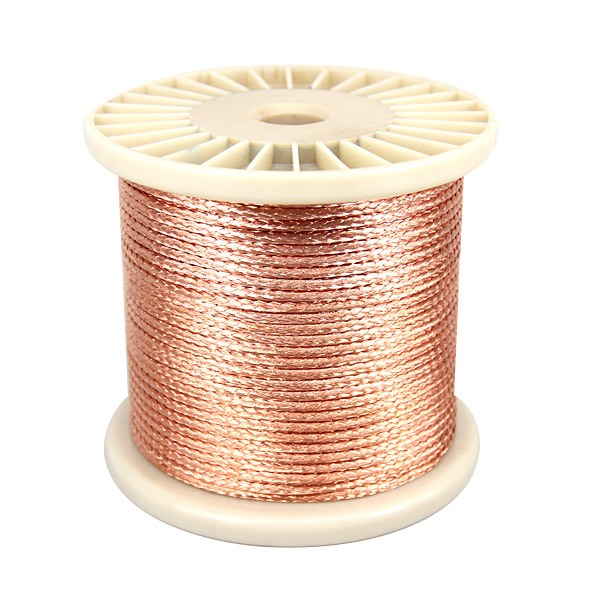

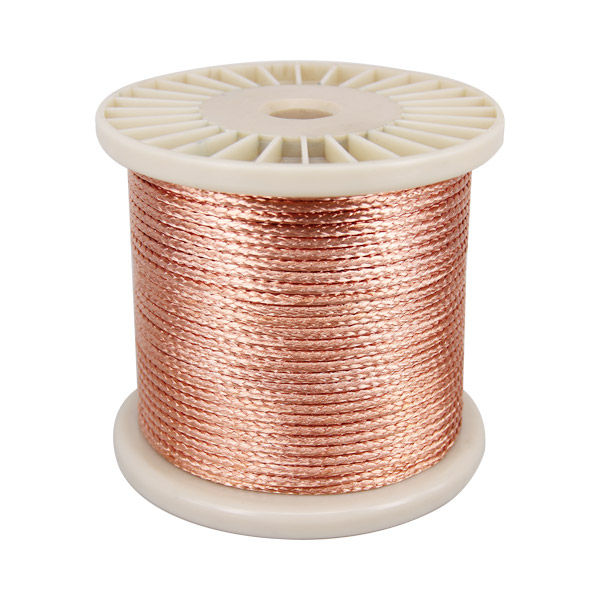

编织线
Time：2016-03-25 13:03:45
View：3584
| 原材料： 无氧铜 | 裸铜、镀锡、镀镍、镀银、合金 | 可以根据客户需求设计新产品规格 | |||
| 截面积(mm2) | 结构 | 单丝线径（mm) | 外径 (mm) | 净重公斤/千米 | 包装 |
| 0.18 | 8×11 | 0.05±0.003 | ≤0.8 | 1.8 |
d1=180 mm d2= 80 mm l1=142 mm l2=120 mm h= 20 mm |
| 0.20 | 8×13 | ≤0.8 | 2 | ||
| 0.25 | 8×16 | ≤0.9 | 2.5 | ||
| 0.30 | 8×20 | ≤1.0 | 3 | ||
| 0.35 | 8×23 | ≤1.0 | 3.5 | ||
| 0.40 | 8×25 | ≤1.1 | 4 | ||
| 0.50 | 8×32 | ≤1.2 | 5 | ||
| 0.75 | 8×48 | ≤1.5 | 7.5 | ||
| 1.00 | 8×64 | ≤1.8 | 10 | ||
| 1.50 | 8×96 | ≤2.0 | 15 | ||
| 0.50 | 12×22 | ≤1.2 | 5 | ||
| 1.00 | 12×42 | ≤1.7 | 10 | ||
| 1.50 | 12×51 | ≤2.0 | 15 | ||
| 2.00 | 12×86 | ≤2.2 | 20 | ||
| 0.50 | 8×16 | 0.07±0.003 | ≤1.2 | 5 | |
| 0.60 | 8×20 | ≤1.3 | 6 | ||
| 0.75 | 8×24 | ≤1.5 | 7.5 | ||
| 1.00 | 8×32 | ≤1.7 | 10 | ||
| 1.10 | 8×36 | ≤1.3 | 13 | ||
| 1.50 | 8×49 | ≤1.9 | 15 | ||
| 1.50 | 12×33 | ≤2.0 | 15 | ||
| 2.00 | 12×44 | ≤2.2 | 20 | ||
| 2.50 | 12×54 | ≤2.7 | 25 | ||
| 3.00 | 12×65 | ≤3.0 | 30 | ||
| 4.00 | 12×86 | ≤3.3 | 40 | ||
| 5.00 | 12×108 | ≤3.7 | 50 | ||
| 6.00 | 12×130 | ≤3.9 | 60 | ||
| 8.00 | 12×173 | ≤4.7 | 80 | ||
| 10.00 | 12×217 | ≤5.2 | 100 | ||
| 12.00 | 12×260 | ≤5.7 | 120 | ||
| 0.30 | 8×8 | 0.08±0.003 | ≤1.0 | 3 | |
| 1.50 | 8×37 | ≤2.0 | 15 | ||
| 2.00 | 8×50 | ≤2.2 | 20 | ||
| 2.50 | 8×62 | ≤2.6 | 25 | ||
