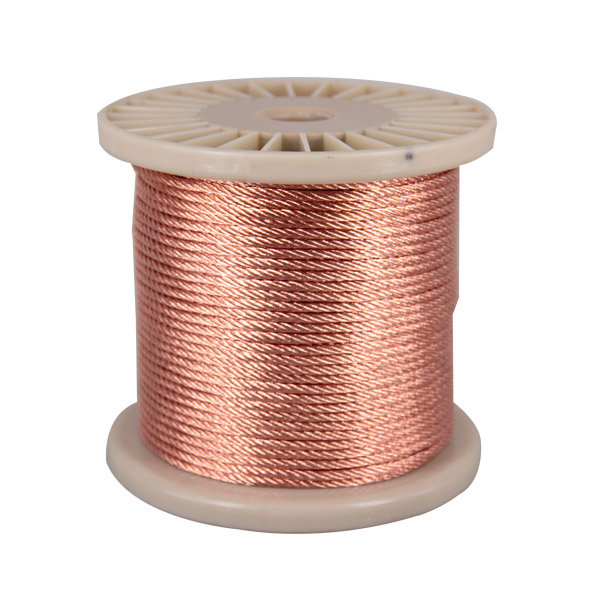

Copper round wire
Time：2016-03-25 13:13:35
View：2031
| Materials: E-Cu/OF-Cu | bare / tinned coated / nickel coated | can make the new sample based on the customer's requirement | |||
| cross section (mm2) | construction | single wire diameter（mm) | outer diameter(mm) | net weight ≈kg/1000m | packaging |
| 0.20 | 3×34 | 0.05±0.003 | ≤0.8 | 8 |
|
| 0.30 | 3×51 | ≤1.0 | 10 | ||
| 0.35 | 3×60 | ≤1.0 | 10 | ||
| 0.40 | 4×50 | ≤1.0 | 10 | ||
| 0.50 | 4×66 | ≤1.2 | 12 | ||
| 0.30 | 7×22 | ≤1.0 | 10 | ||
| 0.50 | 7×36 | ≤1.2 | 12 | ||
| 0.55 | 7×40 | ≤1.25 | 12.5 | ||
| 0.65 | 7×47 | ≤1.5 | 15 | ||
| 0.90 | 7×66 | ≤1.6 | 16 | ||
| 1.00 | 7×76 | ≤1.7 | 17 | ||
| 1.50 | 19×41 | ≤2.0 | 20 | ||
| 2.00 | 19×54 | ≤2.1 | 21 | ||
| 0.80 | 3×53 | 0.07±0.003 | ≤1.6 | 16 | |
| 1.00 | 7×38 | ≤1.7 | 17 | ||
| 2.00 | 7×3×25 | ≤2.2 | 22 | ||
| 2.50 | 7×3×30 | ≤2.6 | 26 | ||
| 3.00 | 7×3×38 | ≤2.7 | 27 | ||
| 4.00 | 7×3×49 | ≤3.1 | 31 | ||
| 6.00 | 7×3×75 | ≤3.7 | 37 | ||
| 8.00 | 7×3×96 | ≤4.7 | 47 | ||
| 10.00 | 7×3×122 | ≤5.2 | 52 | ||
| 12.00 | 7×3×148 | ≤5.5 | 55 | ||
| 0.30 | 3×20 | 0.08±0.003 | ≤1.0 | 10 | |
| 0.40 | 3×27 | ≤1.1 | 11 | ||
| 0.50 | 3×33 | ≤1.2 | 12 | ||
| 0.75 | 3×50 | ≤1.5 | 15 | ||
| 2.00 | 7×38 | ≤1.8 | 18 | ||
| 2.20 | 7×40 | ≤1.9 | 19 | ||
| 2.00 | 7×36 | 0.10±0.003 | ≤2.1 | 21 | |
| 2.50 | 7×46 | ≤2.5 | 25 | ||
| 3.00 | 7×56 | ≤2.7 | 27 | ||
| 4.00 | 7×72 | ≤3.0 | 30 | ||
| 5.00 | 7×90 | ≤3.4 | 34 | ||
| 6.00 | 7×75 | 0.12±0.003 | ≤3.7 | 37 | |
| 8.00 | 12×59 | ≤4.7 | 47 | ||
| 10.00 | 12×75 | ≤5.2 | 52 | ||
| 12.00 | 12×88 | ≤5.5 | 55 | ||
| 16.00 | 19×75 | ≤6.7 | 67 | ||
| 3.50 | 7×37 | 0.13±0.003 | ≤2.9 | 29 | |
| 4.00 | 7×43 | ≤3.1 | 31 | ||
| 5.50 | 7×59 | ≤3.5 | 35 | ||
| 7.00 | 7×75 | ≤4.5 | 45 | ||
